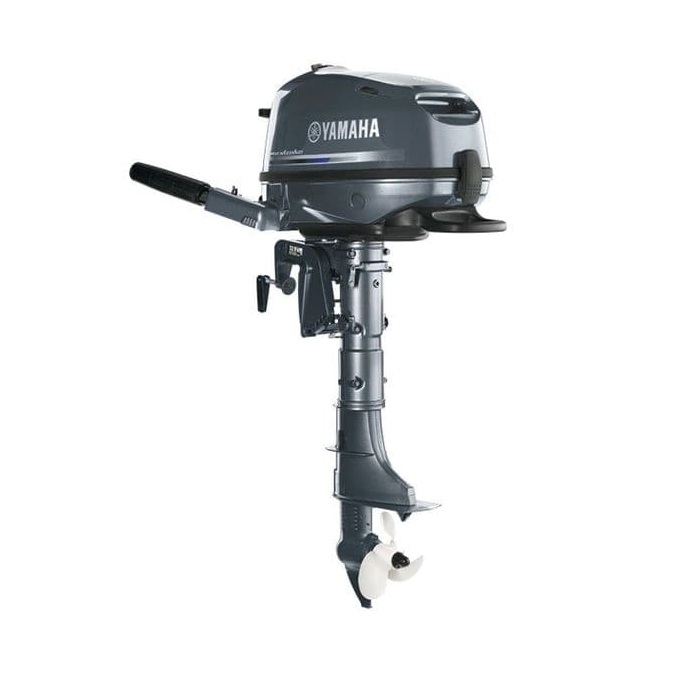

Yamaha F5AMHS 5HP Standard Shaft Outboard

Yamaha F5AMHS

Tiller Control | Manual Start | Manual Tilt | 27kg

These engines, with their smart, stylish looks, are so light and easy to handle, that carrying one between the shore and the deck of your main boat is a breeze. The F4, F5 and F6 are convenient to store and use, offering the power you need to hit the water with confidence.

Compact size, large carrying handles and built-in fuel tanks enhance their portability – and start-up is easy with Yamaha’s CDI Ignition System. Low fuel consumption, simple controls and low noise and vibration levels, along with Yamaha reliability, come as standard.

For families wanting to get on the water easily – or a yacht owner wanting a handy auxiliary – the F4, F5 and F6 offer the smart solution.

Engine Specifications:

• Engine type: 4-stroke
• Displacement: 139 cm³
• No. of cylinders/configuration: 1, OHV
• Bore x stroke: 62.0 mm x 46.0 mm
• Prop shaft output at mid range: 3.7kW / 5000 rpm
• Full throttle operating range: 4,500 – 5,500 rpm
• Lubrication system: Wet sump
• Fuel Induction System: 1-Carb
• Ignition / advance system: CDI
• Gear ratio: 2.08 (27/13)

Dimensions:

• Recommended boat transom height: S:435mm
• Weight with propeller: F5AMHS: 27.0 kg
• Fuel tank capacity: 1.1 litres (Built-in fuel tank) or optional separate fuel tank
• Oil pan capacity: 0.6 litres

Features:

• Control: Tiller handle
• Start Method: Manual Pull
• Trim and tilt method: Manual
• Battery Charging: Optional 12v – 6A Output with charging kit)
• Propeller: Included
• Shallow Water Drive: Standard
